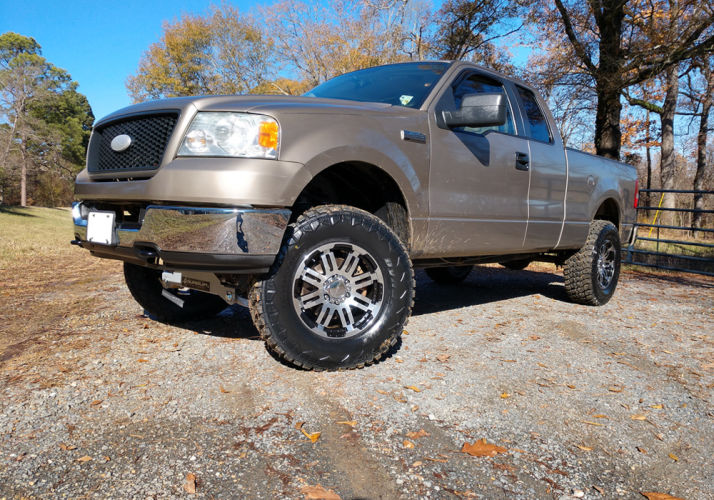

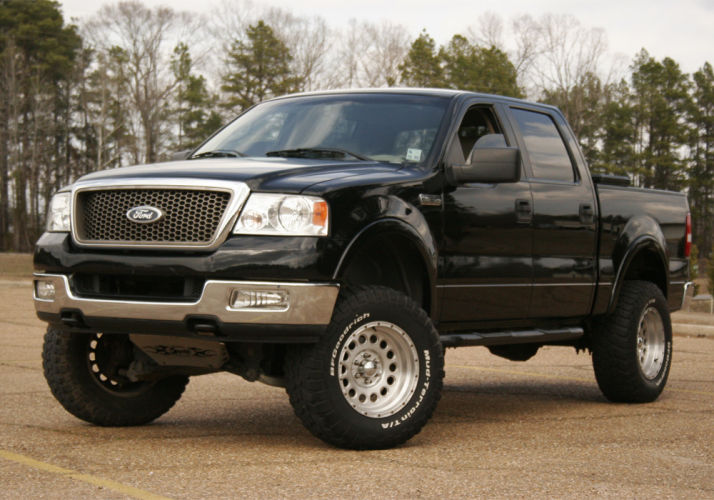

SuperLift 6″ Lift Kit w/ Bilstein Shocks for 2004, 2005, 2006, 2007, 2008 Ford F-150 4WD
Part: K174B
* This is a complete replacement knuckle style suspension Lift Kit for the 04-08 Ford F-150 4WD
* Provides 6” lift height
* Includes fabricated rear lift blocks and rear Superlift shock absorbers or rear 5100 Series Bilstein shock absorbers.
Include:
* All brackets, cross-members, shocks, steering knuckles, u-bolts, spacers, and hardware required specific to the 04 – 08 4wd Ford F-150.
* Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
PRODUCT DETAILS:
Features:
* Direct bolt-on (No Weld Design)
* Allows the use of 18″ or larger factory wheels
* Makes room for up to 35″ tires
* Maintains awesome ride quality and handling characteristics
* Aligns to OEM specifications
* Corrects front to rear factory rake
* Retains OEM track width

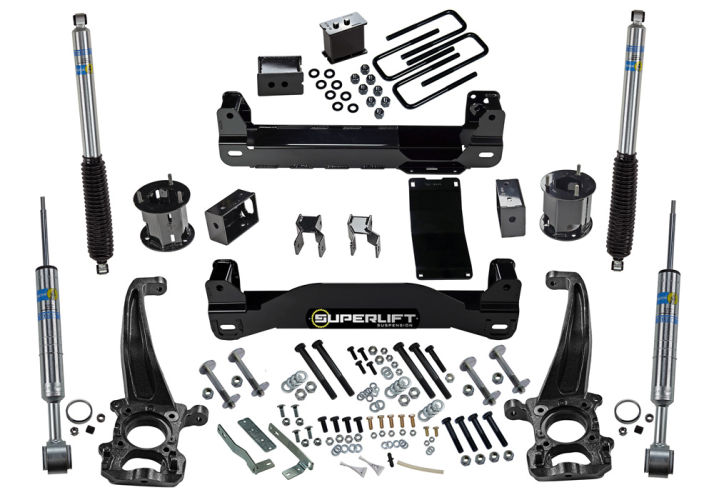

Includes:
Front
* CNC machined extended ductile iron steering knuckles
* CNC machined billet aluminum driveshaft spacer
* All fabricated steel components are laser cut, CNC formed finished with a durable black powder coat
* Front top mount strut spacers
* One-piece front and rear cross members
* Front differential skid plate
* Sway-bar relocation brackets
* Differential relocation brackets
* Brake line relocation brackets
* Eccentric cam-bolts
Rear
* Fabricated lift blocks
* Brake line relocation bracket
* U-bolts and hardware
* Compression stop extensions
* Superlift Shocks (2) OR Bilstein Shocks (2)
TIRE & WHEEL INFO:
Tire
Wheel
Backspacing
Offset
35 x 12.5
18 x 9
4.5 -5.7 inch
–
35 x 12.5
20 x 9
4.5 -5.7 inch
–
35 x 12.5
22 x 9
4.5 -5.7 inch
–
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
Installation Notes:
* Installation time: 8 hours
* Difficulty level: 3 of 5
