Description

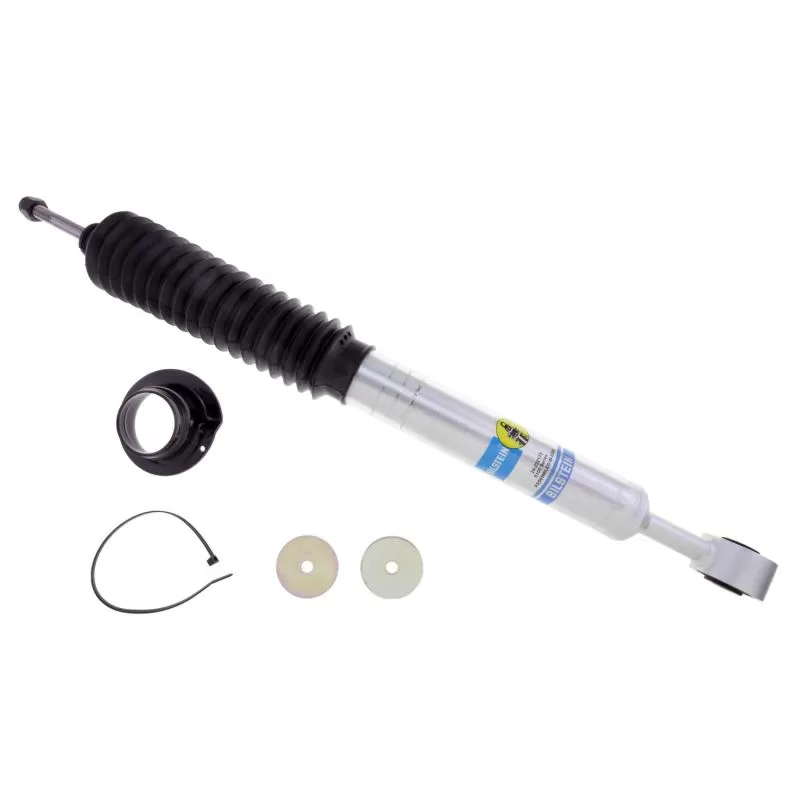

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
46mm Monotube Shock Absorber
Features
- Reservoir: No
- Upper Mount Type: Stem
- Aftermarket Upper Arms Required: No
- Finish: Zinc Plated
- Collapsed Length (IN): 17.77
- Extended Length (IN): 24.21
- Body Design: Snap Ring Grooved Body (Coilover)
- Series: B8 5100 (Ride Height Adjustable)
- Collapsed Length (MM): 451.3
- Title: Bilstein Shock Absorbers
- Boot Included: Black Bellows
- Internal Design: Monotube
- Body Diameter (ID): 46mm
- California Proposition 65: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
- Lower Mount Type: Eye 16.4mm
- Extended Length (MM): 615.0
Notes:
Front Lift Height: 0.875-2.3″
You may need to order more than one of this item for your car. Please consult the table below.
Fits position: Front

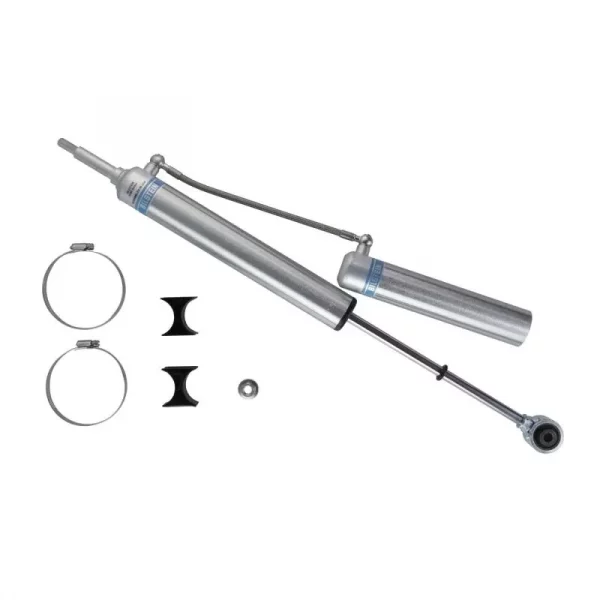

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
46mm Monotube Shock Absorber
Features
- Collapsed Length (MM): 386.5
- Title: Bilstein Shock Absorbers
- Finish: Zinc Plated
- Extended Length (MM): 652.5
- Billet Reservoir Clamp Included: No
- Lower Mount Type: Eye 12.4mm
- Body Diameter (ID): 46mm
- California Proposition 65: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
- Extended Length (IN): 25.69
- Reservoir: Yes
- Series: B8 5160
- Internal Design: Monotube
- Upper Mount Type: Stem
- Collapsed Length (IN): 15.22
- Optional Reservoir Clamp: 11-176015
- Boot Included: No
- Body Design: Smooth Body (Non-Coilover)
Notes:
For Rear Lifted Height: 0-1.5″
Reuse OE upper mounting hardware
You may need to order more than one of this item for your car. Please consult the table below.
Fits position: Rear
