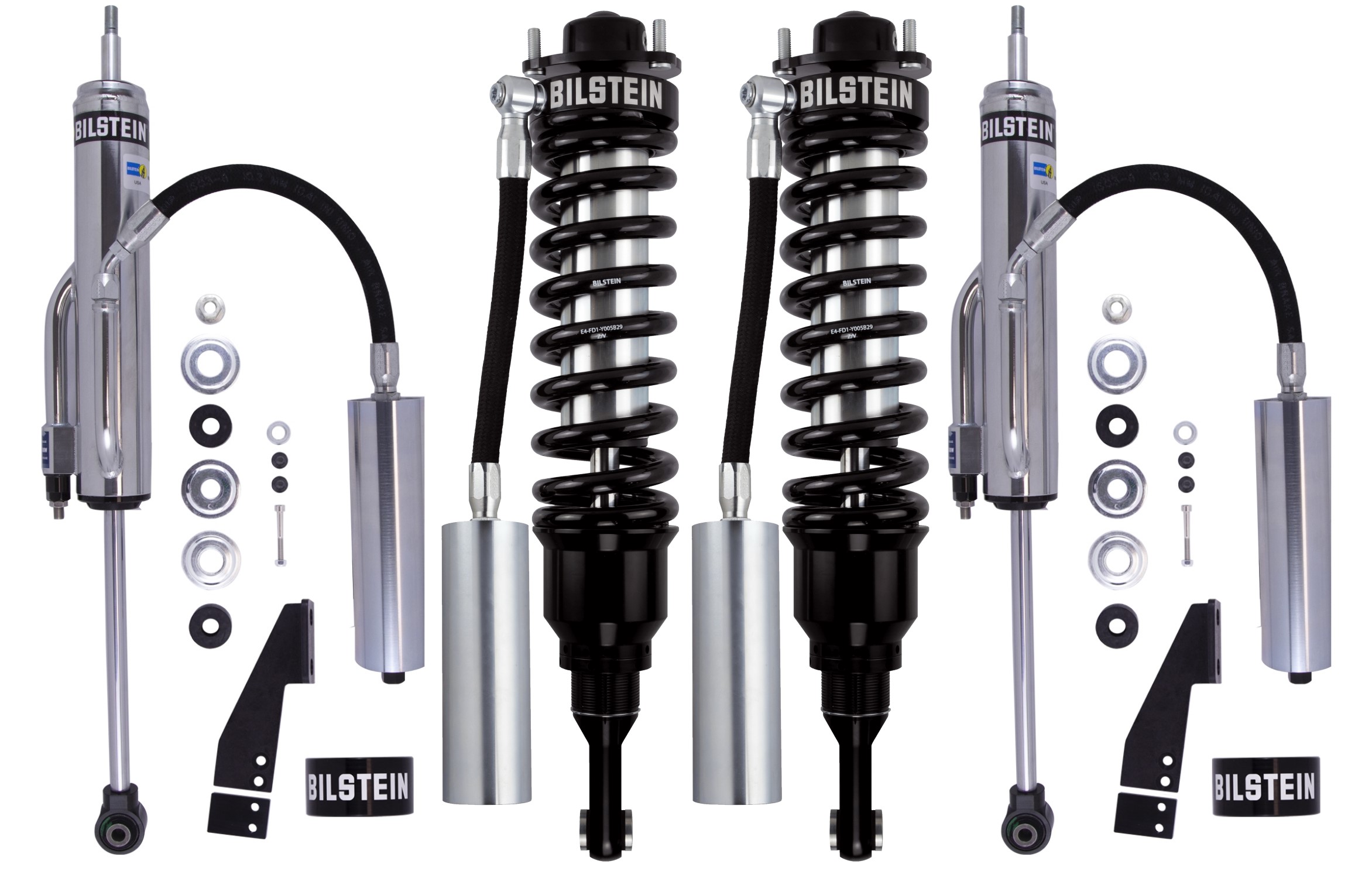

Bilstein B8 8112, 8100 0-3.25″ Front Coilovers, Rear Lift Shocks for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 Toyota Tundra 2WD/4WD
Part: 41-284544_41-284551_25-284539_25-284522
Front:
Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
* Collapsed Length (IN): 19.43
* Extended Length (IN): 25.79
* Collapsed Length (MM): 493.6
* Extended Length (MM): 655.1
* Finish: Dampers: Zinc Plated/Springs: Black
* Reservoir: Yes
* Aftermarket Upper Arms Required: Yes
* Body Design: Smooth Body (Coilover)
* Body Diameter: 60mm
* Adjustable Damping: Non-Adjustable
* Optional Heavy Load Springs: N/A
Notes:
* Front Lift Height: 2.25-3.25″
Rear:
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
* Collapsed Length (IN): 15.75
* Extended Length (IN): 25.88
* Collapsed Length (MM): 400.0
* Extended Length (MM): 657.4
* Finish: Zinc Plated
* Reservoir: Yes
* Body Design: Bypass Body (Non-Coilover)
* Body Diameter: 60mm
Notes:
* For Rear Lifted Height: 0-2.5″
